Soil Drilling Sampling Equipment Crawler Type Desiel Engine

Product Categories
Shannxi Xitan Geological Equipement Co.,Ltd
Contact Now

Soil Drilling Sampling Equipment Crawler Type Desiel Engine

  • 1
  • 2
  • 3

Brand Name : XITAN EQUIPMENT

Model Number : EDS-70

Certification : CE;ISO21900:2015

Place of Origin : China

MOQ : 1 set

Price : Negotiationable

Payment Terms : T/T, Western Union

Supply Ability : 5sets/Month

Delivery Time : 30-90days

Packaging Details : Machine in Nude Package, Spare Part in Wooden Case

Condition : new

Drill rod : Drilling pipe

Specification : 4000X1800X2900mm

Drilling way : Direct push,Rotary

Product Name : Environmental Drill Rigs

Apllicable groud : soft soil

Multifunction : Polution Sampling and treatment in one

Contact Now

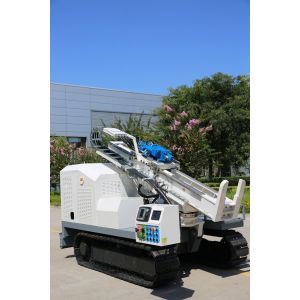

Soil Drilling Sampling Equipment Crawler Type Desiel Engine ESD-70

This drill rig is soil Sampling,pollution sampling and treatment in one.

Sampling environmental friendly drill rig confriguration

Indroduction

ESD-70 environmental sampling drilling rig is a new type of soil sampling rig. It is a full hydraulic drilling rig specially used in the field of environmental protection. The drilling rig uses a single impact power head, which is easy to operate and cost-effective.

The device has the following functions:
1. Direct push type undisturbed soil sampling.
2. Direct push for undergroud sampling.

3.Injetion to soil and Contaminant treatment for pollution control

Advantages:

1.Thrust effictively

2.Without water

3.Drilling with sampling tube

4.Multifunction equipment :Sampling and polution treatment

Parameter:

Impact power head
Torque(N·m) 950
Speed(rpm) 200
Frequency(Hz) 3120/3900/4800
Impact power (kw) 14.5
Slewing power head
Power head torque(N·m) 4000/8000
Power head speed (rpm) 92/46
power system
Engine model Commins QSB3.9-C100-31
Power(rpm) 75 kw/2500
Feeding system
Feed stroke(mm) 1700
Feeding force(kN) 100
Pulling back force (kN) 160
Basic data
Transport dimension(mm) 4000X1800X2900
Working dimension(mm) 4130X1900X3160
Weight(T) 6.6

Soil Drilling Sampling Equipment Crawler Type Desiel Engine

Soil Drilling Sampling Equipment Crawler Type Desiel Engine

Soil Drilling Sampling Equipment Crawler Type Desiel Engine

Soil Drilling Sampling Equipment Crawler Type Desiel Engine
